Products
-->
Exhaustgas-Heatexchangers

FERCHER Exhaustgas-Heatexchangers (Product series FW)

Fercher Rauchgaswärmetauscher, Abgaswärmetauscher, Luftwärmetauscher

- NO sensitive fins, but massive flat-pressed pipes

- Easily removeable panels for cleaning

- easy mechanical cleaning for example with cleaning brush or pressurized air or steam

- Installation into existing constructions/ducts possible

- Manufactured in accordance to the DDGV (Duale Druckgeräteverordnung)

- Heat exchanger suitable as flue gas cooler for flue gas, exhaust air and combustion air

- You can also order the popular FW-100 directly from our -> webshop <-

Table - FERCHER Exhaustgas-Heatexchangers Product-Series
model-name / typeExhaustgas Maximum FlowrateNominal-Power N1*Nominal-Power N2*empty-weightExtractable Heatexchangercondense-water outletExhaustgas-Flow-Direction
FW-1001,500 m³/h8 kW12 kW39 kgoptionallyoptionallyvertical
FW-2002,500 m³/h25 kW68 kW124 kgoptionallyoptionallyvertical
FW-3003,500 m³/h37 kW99 kW162 kgoptionallyoptionallyvertical
FW-4005,000 m³/h52 kW139 kW203 kgoptionallyoptionallyvertical
FW-400-H-A5,000 m³/h52 kW139 kW312 kgYESYEShorizontial
FW-6007,000 m³/h76 kW203 kW271 kgoptionallyoptionallyvertical
FW-600-H-A7,000 m³/h76 kW203 kW388 kgYESYEShorizontial
FW-100013,000 m³/h138 kW367 kW448 kgoptionallyoptionallyvertical
FW-1000-X226,000 m³/h276 kW735 kW920 kgoptionallyoptionallyvertical
FW-1000-X339,000 m³/h415 kW1,102 kW1,326 kgoptionallyoptionallyvertical
FW-1000-X452,000 m³/h553 kW1,470 kW1,729 kgoptionallyoptionallyvertical
FW-1000-X4-H-A52,000 m³/h553 kW1,470 kW2,507 kgYESYEShorizontial
FW-1000-X16200,000 m³/h2,212 kW5,878 kW10,103 kgYESYEShorizontial
M-FW-2002,500 m³/h25 kW68 kW73 kgoptionallyoptionallyvertical
M-FW-3003,500 m³/h37 kW99 kW98 kgoptionallyoptionallyvertical
M-FW-4005,000 m³/h52 kW139 kW145 kgoptionallyoptionallyvertical
M-FW-6007,000 m³/h76 kW203 kW196 kgoptionallyoptionallyvertical
M-FW-100013,000 m³/h138 kW367 kW331 kgoptionallyoptionallyvertical


* Definition nominal-power N1: Exhaustgas from natural-gas-burner (combustion-air: 120%) with 250°C, exhaustgas-volume chosen so that pressure-drop equals 200 Pa, heatingwater from 60°C to 80°C
* Definition nominal-power N2: Exhaustgas from natural-gas-burner (combustion-air: 120%) with 400°C, exhaustgas-volume chosen so that pressure-drop equals 500 Pa, heatingwater from 60°C to 80°C

We are glad to help you find the correct heatexchanger for your application, please send us an e-mail (office@fercher.at) or click on the button "Ask for dimensioning/calculation and offer" below.

Datasheet-Collection: FERCHER Exhaustgas-Heatexchangers Types FW
Ask for dimensioning/calculation and offer (free of charge and unbinding)
Working-Principles

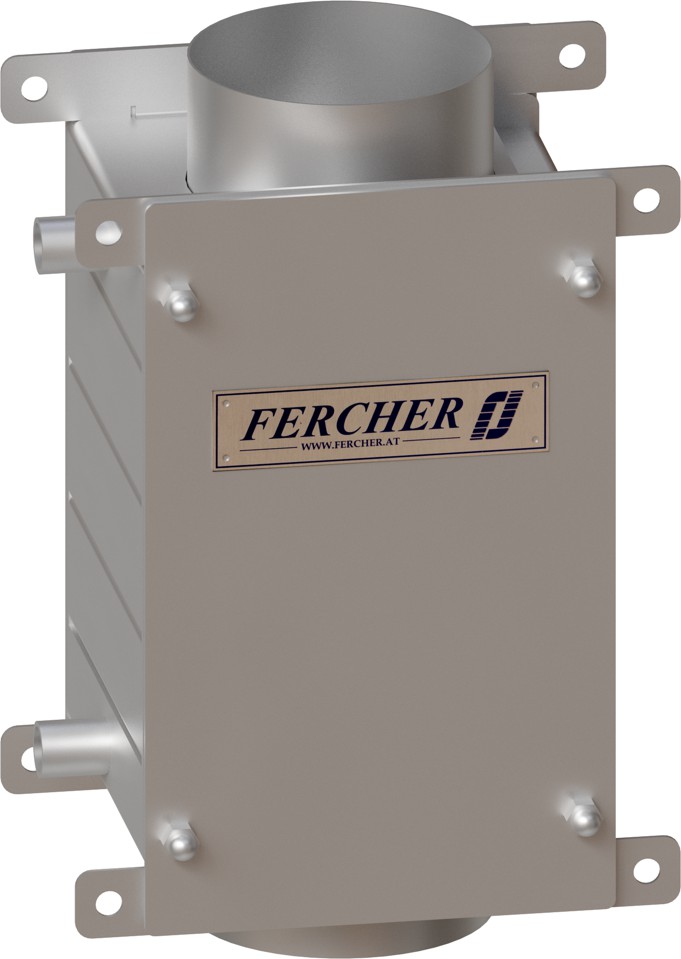

FW-100

FW-100
table - technical specifications - FW-100
model-name / typeFW-100
Exhaustgas Maximum Flowrate1,500 m³/h
Nominal-Power N1*8 kW
Nominal-Power N2*12 kW
empty-weight39 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

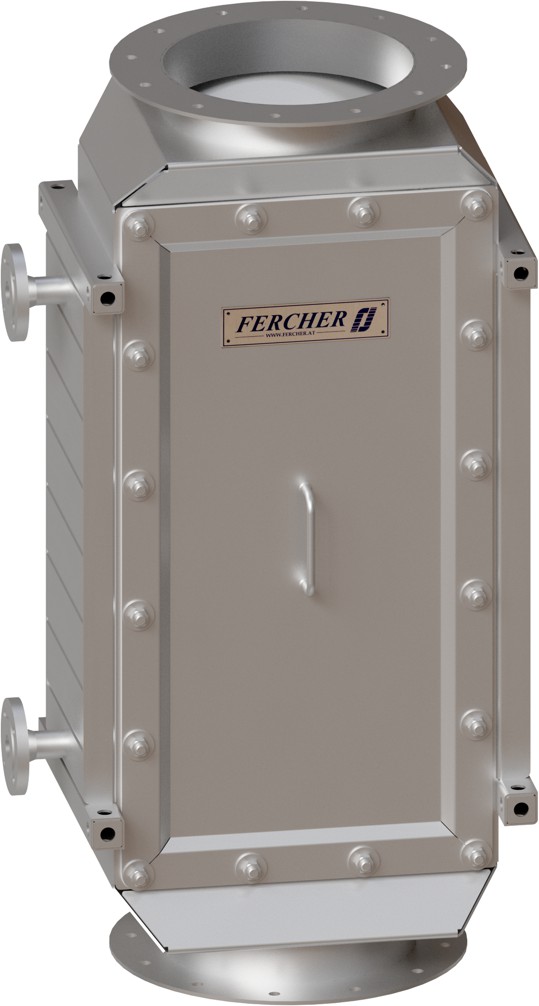

FW-200

FW-200
table - technical specifications - FW-200
model-name / typeFW-200
Exhaustgas Maximum Flowrate2,500 m³/h
Nominal-Power N1*25 kW
Nominal-Power N2*68 kW
empty-weight124 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

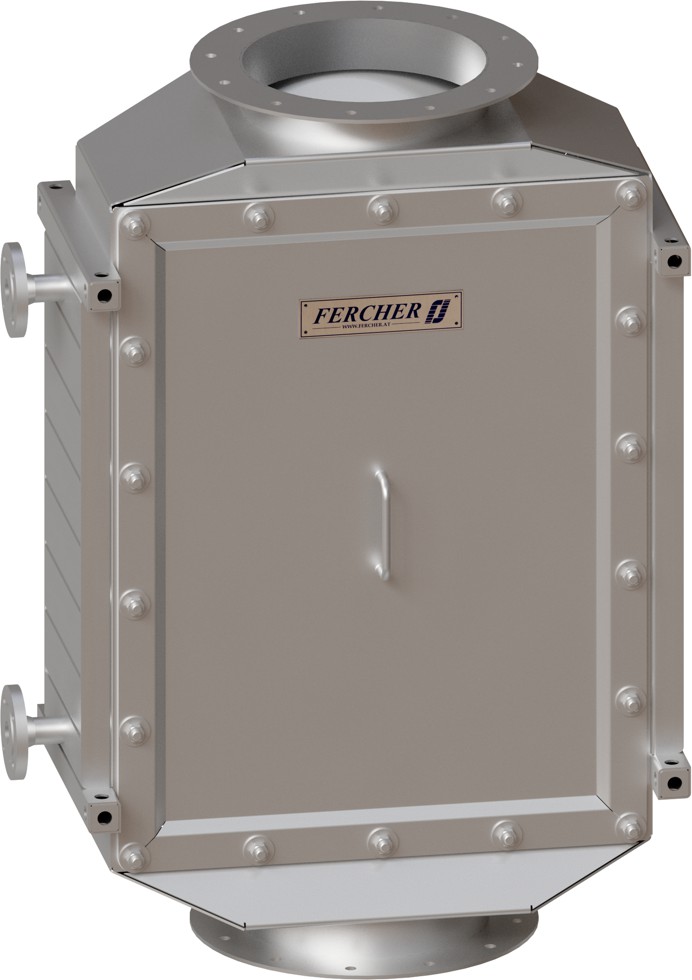

FW-300

FW-300
table - technical specifications - FW-300
model-name / typeFW-300
Exhaustgas Maximum Flowrate3,500 m³/h
Nominal-Power N1*37 kW
Nominal-Power N2*99 kW
empty-weight162 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

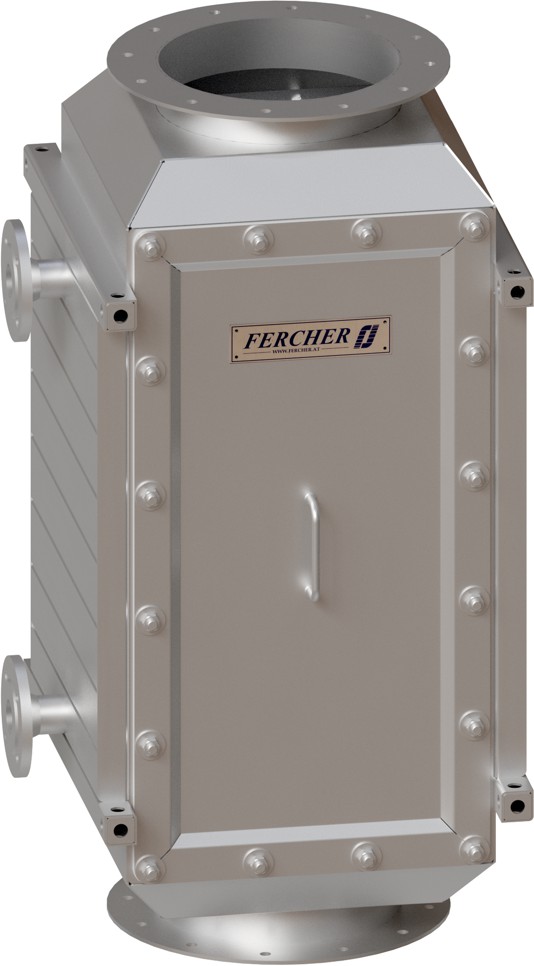

FW-400

FW-400
table - technical specifications - FW-400
model-name / typeFW-400
Exhaustgas Maximum Flowrate5,000 m³/h
Nominal-Power N1*52 kW
Nominal-Power N2*139 kW
empty-weight203 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

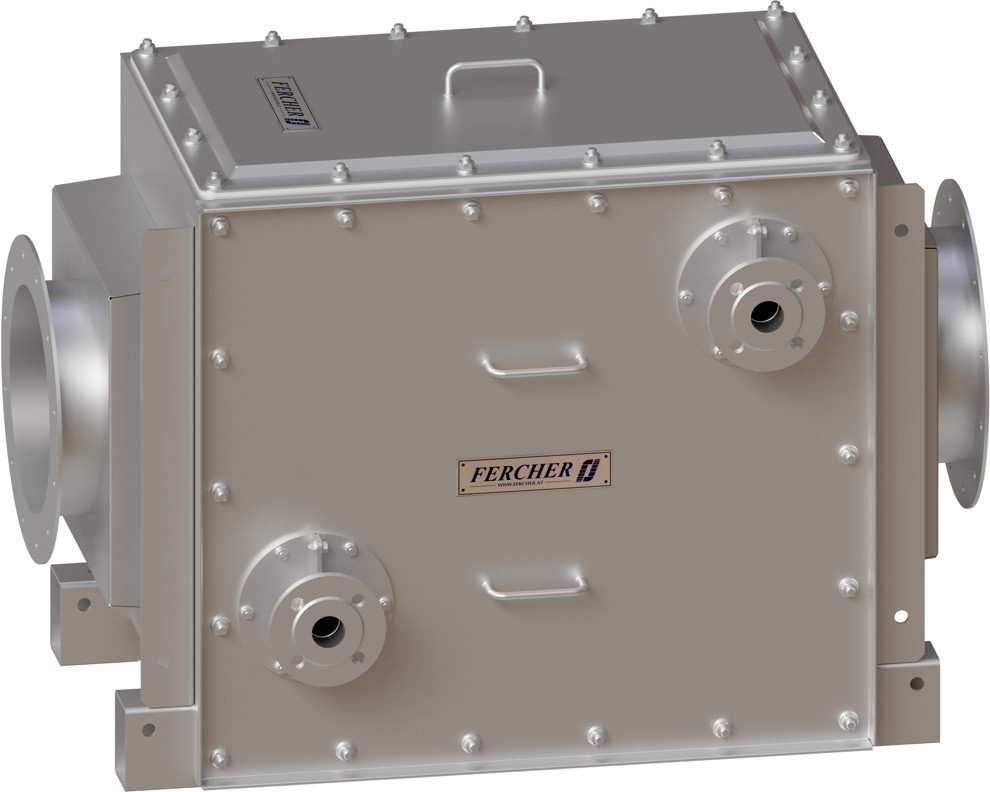

FW-400-H-A

FW-400-H-A
table - technical specifications - FW-400-H-A
model-name / typeFW-400-H-A
Exhaustgas Maximum Flowrate5,000 m³/h
Nominal-Power N1*52 kW
Nominal-Power N2*139 kW
empty-weight312 kg
Extractable HeatexchangerYES
condense-water outletYES
Exhaustgas-Flow-Directionhorizontial

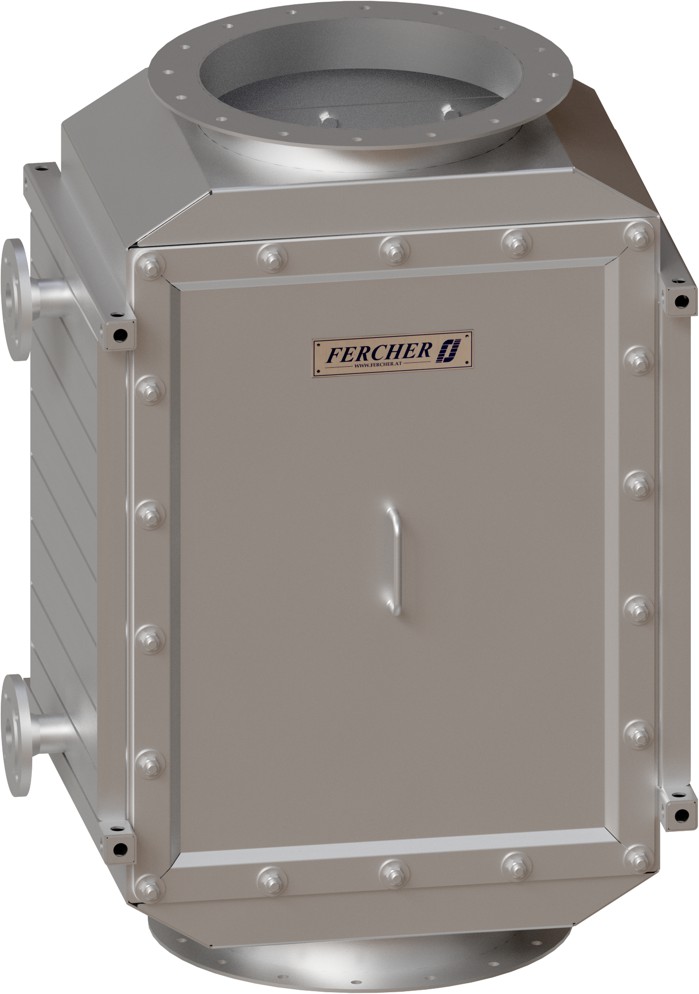

FW-600

FW-600
table - technical specifications - FW-600
model-name / typeFW-600
Exhaustgas Maximum Flowrate7,000 m³/h
Nominal-Power N1*76 kW
Nominal-Power N2*203 kW
empty-weight271 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

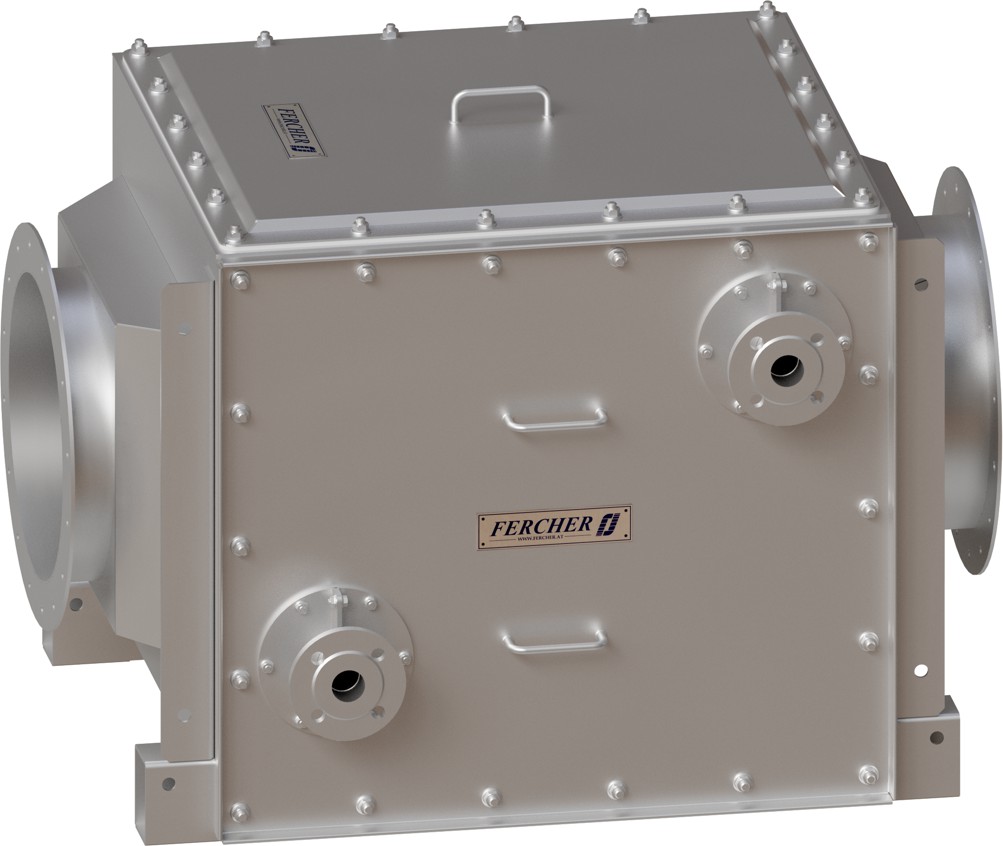

FW-600-H-A

FW-600-H-A
table - technical specifications - FW-600-H-A
model-name / typeFW-600-H-A
Exhaustgas Maximum Flowrate7,000 m³/h
Nominal-Power N1*76 kW
Nominal-Power N2*203 kW
empty-weight388 kg
Extractable HeatexchangerYES
condense-water outletYES
Exhaustgas-Flow-Directionhorizontial

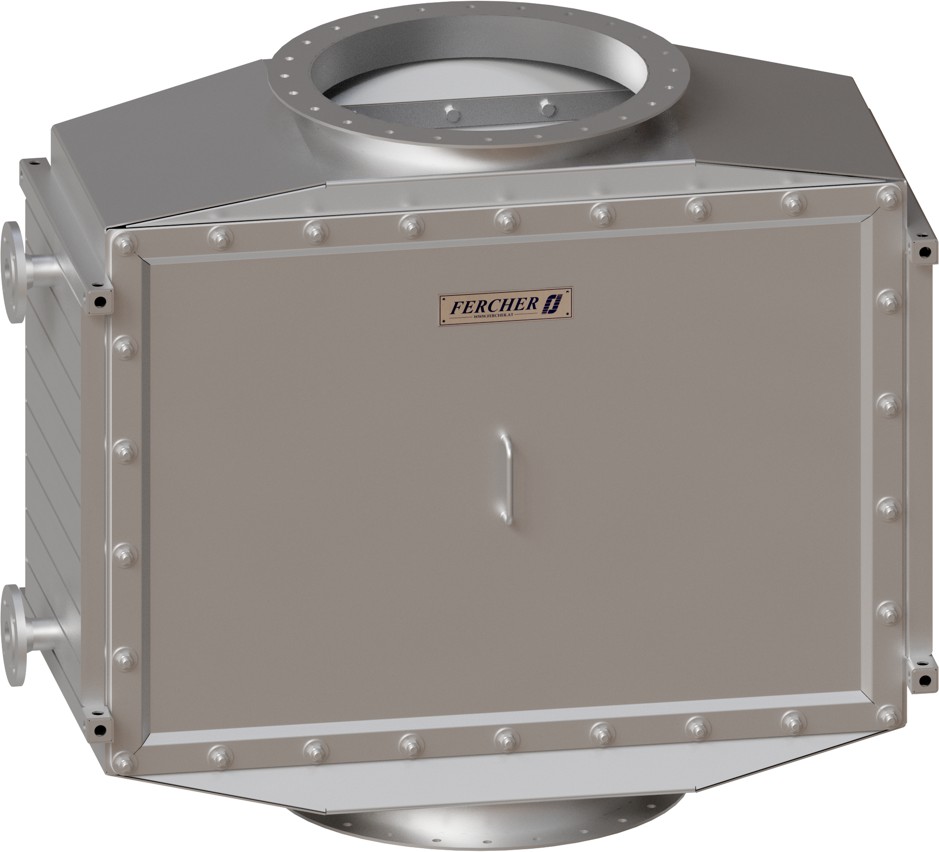

FW-1000

FW-1000
table - technical specifications - FW-1000
model-name / typeFW-1000
Exhaustgas Maximum Flowrate13,000 m³/h
Nominal-Power N1*138 kW
Nominal-Power N2*367 kW
empty-weight448 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

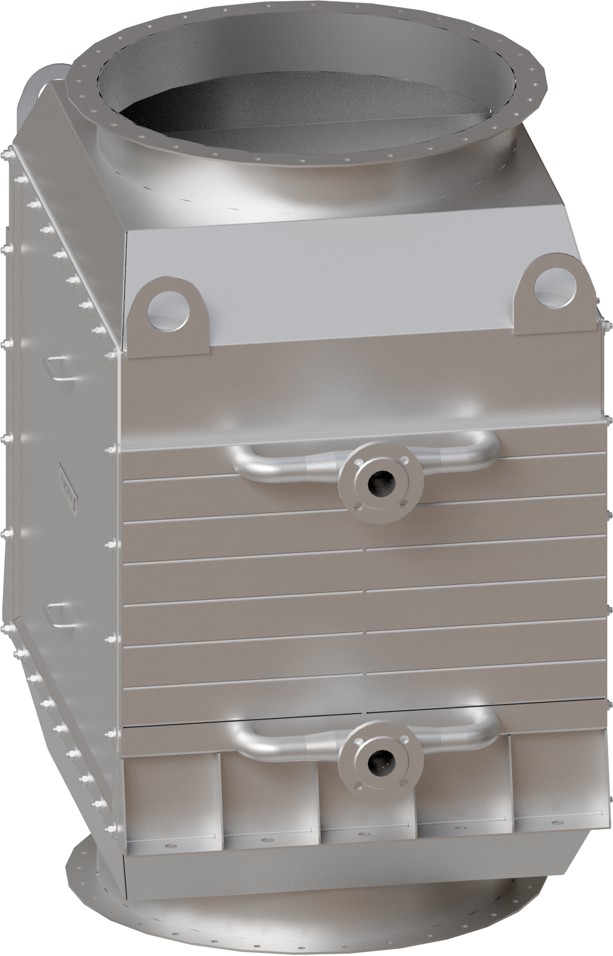

FW-1000-X2

FW-1000-X2
table - technical specifications - FW-1000-X2
model-name / typeFW-1000-X2
Exhaustgas Maximum Flowrate26,000 m³/h
Nominal-Power N1*276 kW
Nominal-Power N2*735 kW
empty-weight920 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

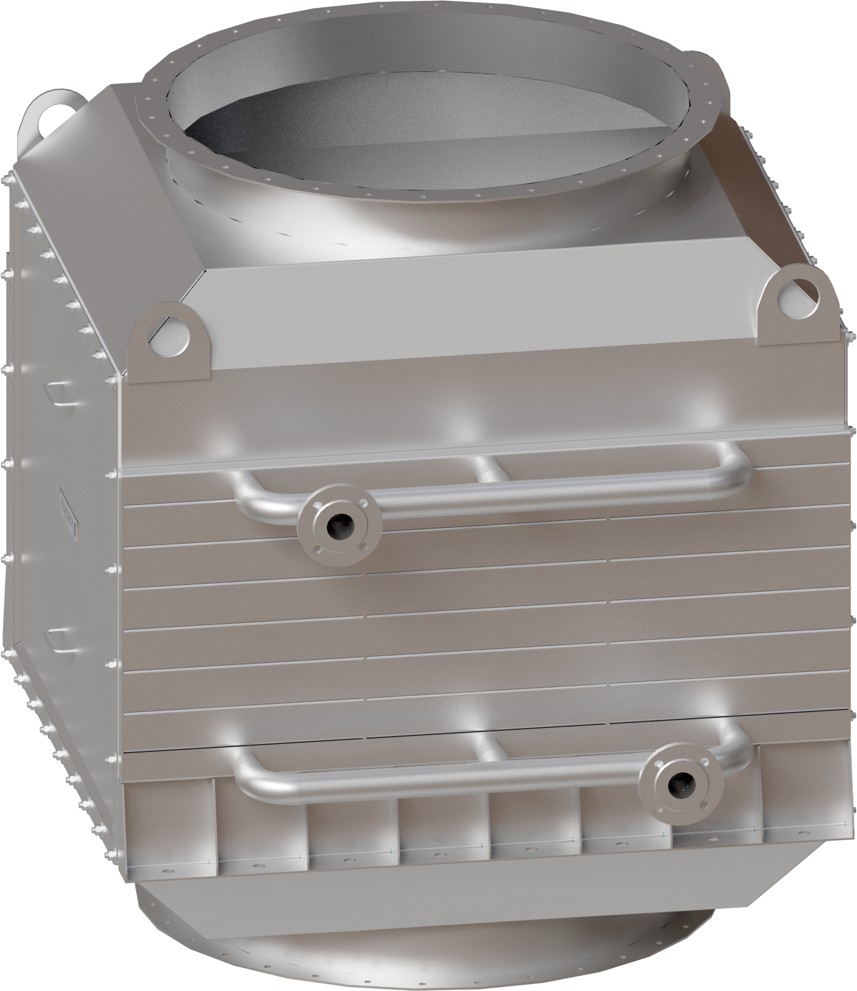

FW-1000-X3

FW-1000-X3
table - technical specifications - FW-1000-X3
model-name / typeFW-1000-X3
Exhaustgas Maximum Flowrate39,000 m³/h
Nominal-Power N1*415 kW
Nominal-Power N2*1,102 kW
empty-weight1,326 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

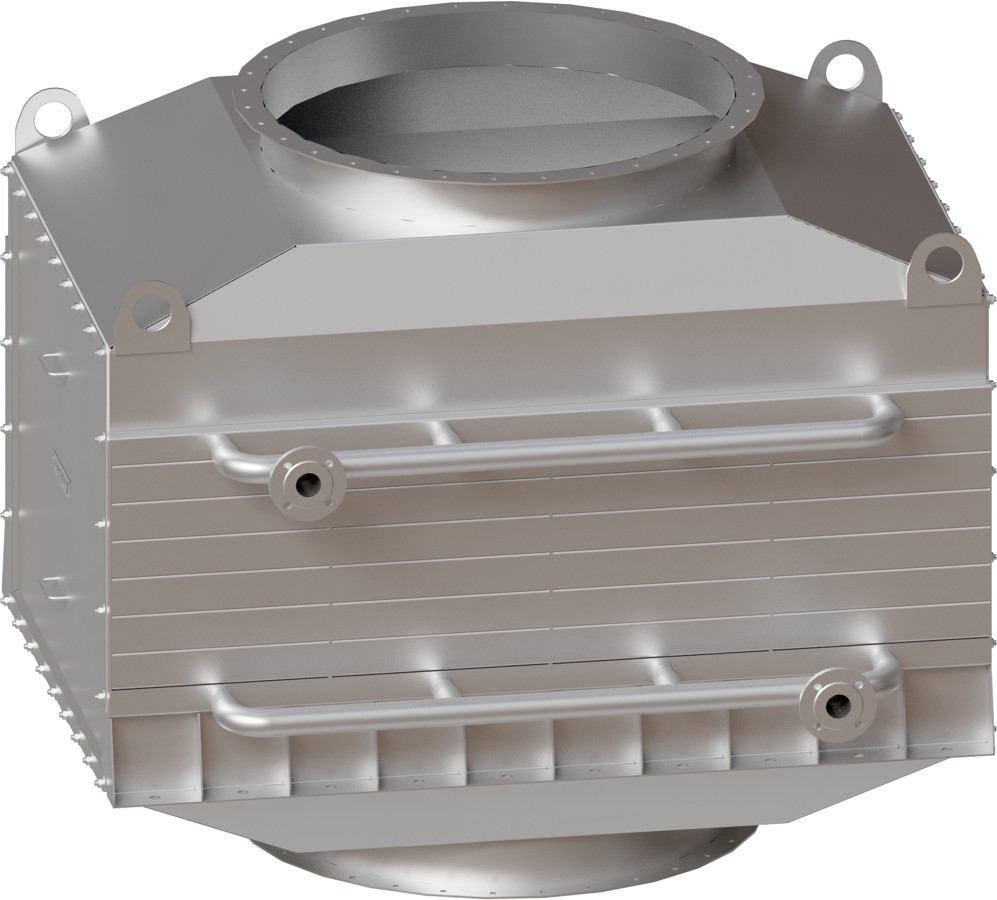

FW-1000-X4

FW-1000-X4
table - technical specifications - FW-1000-X4
model-name / typeFW-1000-X4
Exhaustgas Maximum Flowrate52,000 m³/h
Nominal-Power N1*553 kW
Nominal-Power N2*1,470 kW
empty-weight1,729 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

FW-1000-X4-H-A

table - technical specifications - FW-1000-X4-H-A
model-name / typeFW-1000-X4-H-A
Exhaustgas Maximum Flowrate52,000 m³/h
Nominal-Power N1*553 kW
Nominal-Power N2*1,470 kW
empty-weight2,507 kg
Extractable HeatexchangerYES
condense-water outletYES
Exhaustgas-Flow-Directionhorizontial

FW-1000-X16

table - technical specifications - FW-1000-X16
model-name / typeFW-1000-X16
Exhaustgas Maximum Flowrate200,000 m³/h
Nominal-Power N1*2,212 kW
Nominal-Power N2*5,878 kW
empty-weight10,103 kg
Extractable HeatexchangerYES
condense-water outletYES
Exhaustgas-Flow-Directionhorizontial

M-FW-200

M-FW-200
table - technical specifications - M-FW-200
model-name / typeM-FW-200
Exhaustgas Maximum Flowrate2,500 m³/h
Nominal-Power N1*25 kW
Nominal-Power N2*68 kW
empty-weight73 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

M-FW-300

M-FW-300
table - technical specifications - M-FW-300
model-name / typeM-FW-300
Exhaustgas Maximum Flowrate3,500 m³/h
Nominal-Power N1*37 kW
Nominal-Power N2*99 kW
empty-weight98 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

M-FW-400

M-FW-400
table - technical specifications - M-FW-400
model-name / typeM-FW-400
Exhaustgas Maximum Flowrate5,000 m³/h
Nominal-Power N1*52 kW
Nominal-Power N2*139 kW
empty-weight145 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

M-FW-600

M-FW-600
table - technical specifications - M-FW-600
model-name / typeM-FW-600
Exhaustgas Maximum Flowrate7,000 m³/h
Nominal-Power N1*76 kW
Nominal-Power N2*203 kW
empty-weight196 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical

M-FW-1000

M-FW-1000
table - technical specifications - M-FW-1000
model-name / typeM-FW-1000
Exhaustgas Maximum Flowrate13,000 m³/h
Nominal-Power N1*138 kW
Nominal-Power N2*367 kW
empty-weight331 kg
Extractable Heatexchangeroptionally
condense-water outletoptionally
Exhaustgas-Flow-Directionvertical
